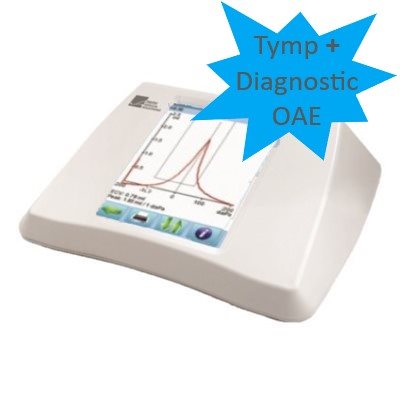

This Sentiero Desktop is a rechargeable, Noah compatible screening tympanometer with diagnostic OAE capabilities, including TEOAE and DPOAE. Lightweight and portable, this Sentiero Desktop is popular amongst providers needing tympanometer with diagnostic OAE all-in-one unit.

Need help identifying the right Sentiero for your practice? Contact us: otp@oaktreeproducts.com or toll free 800.347.1960

The Sentiero Desktop unit showcased here (item# 100497-US11) is a screening tympanometer with diagnostic OAE and offers:

• Tympanometry
  • 226 Hz probe tone (pressure range +300 daPa to -300 daPa)
  • Ipsi acoustic reflex at 0.5, 1, 2, 3 & 4 kHz (intensity range 75 dBHL to 105 dBHL)
• Diagnostic TE/DPOAEs
  • f2 technical data
    • 1, 1.5, 2, 3, 4, 5, 6 & 8 kHz
    • 30 to 65 dBSPL (5 dB step size)
  • two additional DPOAE test options beyond standard frequencies
    • linear: 0.8 to 10 kHz (step size: 0.5 kHz from 1 to 10 kHz), steps: 10 to 1000 Hz (step size 10 Hz)
    • logarithmic: 0.8 to 10 kHz (step size: 0.5 kHz from 1 to 10 kHz), steps: 1 to 30 points per octave (step size 1 point per octave)
  • SNR stop criterion: 6, 9, 12 dB
  • Auto test feature
  • FM DPOAE feature for more robust responses
  • Multi-frequency feature tests two frequencies simultaneously
• 5" full color, LCD touchscreen with graphical display and intuitive icons
• Rechargeable Li-Ion battery (included)
• Internal memory stores up to 1000 patient exams
• Ability to transfer data from Sentiero Desktop to PC to create full-color reports and/or attach results to Noah and EMR system
• Carrying case
• Two year warranty

Optional upgrades & accessories:

• 1 kHz probe tone for tympanometry (item# 100689)
• Printer options
  • Path Medical Seiko printer with connection cable (item# 100439)
  • Path Medical Able printer with connection cable (item# 100687)

Compatible Eartips for Tympanometry

• Grason PM series eartips
• Path Medical brand eartips
