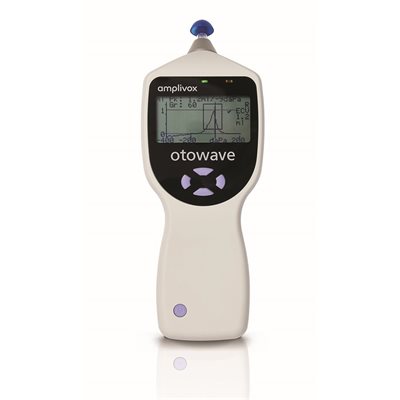

Otowave 102-4 Screening Tympanometer WITHOUT Printer - Four Frequency Ipsi Reflex
Product Code: 102-4NP
- Portable, handheld tympanometer (NO printer )
- 226 Hz probe tone (pressure range +200 daPa to -400 daPa)
- Ipsi acoustic reflex at 0.5, 1, 2 & 4 kHz (intensity range 85 dB - 100 dBHL)
- Large, LCD graphic display
- Battery operated with four AA batteries (included) or four rechargeable NiMH batteries (not included)
- Up to 32, dual-ear patient tests can be stored in memory
- Noah compatible
- Three year warranty
- Packaged with printer option: (item# 102-4)
- 1 kHz only ipsi reflex option: (item# 102-1)
- Rechargeable 4 frequency (0.5, 1, 2, & 4 kHz) ipsi reflex option (item# 102-C)
- Otowave with Clear Probe
- Otowave with White or Black Probe
- Otowave 102-4 Tympanometer
- (4) test cavities
- (30) disposable eartips
- (4) AA batteries
- (1) carry case
- (1) USB stick with manual, AmpliSuite 1.2, AmpliSuite Noah software
- Calibration Certificate

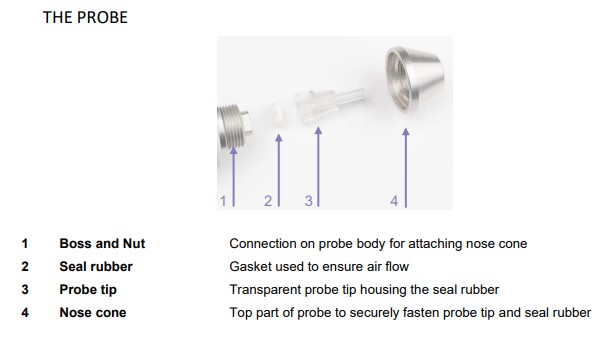

- Spare probe tips & gaskets
- Compatible Eartips for Tympanometry
- Clear Probe
- White or Black Probe
- Grason KR Series Eartips
- Grason Multi-Size Eartips
- Grason Flat Style Eartips
- Printer Supplies/Accessories
- Replacement printer: item# 8503007 (Sanibel MPT II Printer)
- Thermal Paper for Sanibel MPT II Printer (sold by the each): item# ITA-8029305
- USB adapter to transfer test results to PC: item# 6690
NOTE: two designated thermal printers are available options for the Otowave: 1) the Sanibel MPT-II (which Oaktree sells) and 2) the Able AP1300 (which Oaktree does NOT sell). Printers pre-packaged with the Otowave are already configured for communication. When purchasing a printer for an already existing Otowave, it is important to select the correct printer in the set up. Prior to attempting to print results, ensure the printer is fully charged, switched on, loaded with paper and ready to print.
Things to Know Before you Buy
For an additional $40, you can invest in a screening tympanometer that offers multiple probe tones
The Otowave 102-4NP s a hand-held tympanometer with 226 Hz probe tone and ipsi reflex capabilities at 0.5,, 1, 2 and 4 kHz. This version of the Otowave runs on AA batteries or AA rechargeable batteries. For about $40 more, the Resonance r16m-LITE is a touch screen rechargeable tympanometer (with built-in Lithoum Ion battery) offering the same capabilities with the addition of a 1000 Hz probe tone. The 1000 Hz probe tone is applicable to pediatric patients 6 months of age or younger. If you currently serve or plan to serve pediatric patients in the future, a tympanometer offering with both probe tones is recommended, particularly since the additional equipment investment is relatively small.
Two models of the Otowave are available; make most informed decision by reading this
Two models of the Otowave include the 102-1 and the 102-4. Oaktree Products offers both models with and without a printer (e.g. 102-1 vs 102-1NP where "NP" indicates "no printer"). Both the Otowave 102-1 and Otowave 102-4 operate on 4 AA batteries or 4 rechargeable NiHM batteries. Both offer tympanometry with the standard 226 Hz probe tone. Both offer ipsilateral acoustic reflexes.
The main difference is the number of frequencies available for ispi acoustic reflex testing. The Otowave 102-1 offers ipsi acoustic reflexes at 1000 Hz only, whereas the Otowave 102-4 offers ipsi acoustic reflexes at 500, 1000, 2000, and 4000 Hz. The other difference is the Otowave 102-4 is also available with a built-in rechargeable NiMH battery and docking station (see item 102-C).
In summary, there are two models of the Otowave available in 6 different SKUS:
