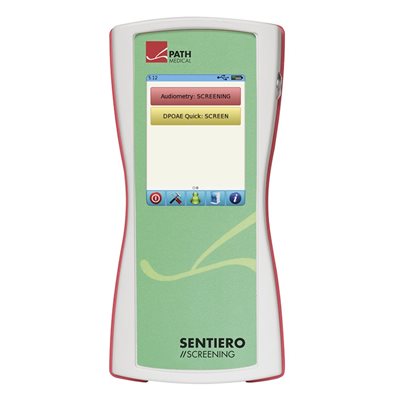

Path Medical Sentiero Handheld Screening DPOAE & Screening Audiometry
Product Code: 100250-SC-AUD
- Portable, rechargeable handheld DPOAE screener & screening audiometer all-in-one (no printer)
- DPOAE
- 4 fixed protocols
- Screen: 2, 3, 4 & 5 kHz w/ 3 out of 4 pass at 12 dB SNR (as fast as possible)
- Standard: 2, 3, 4 & 5 kHz w/ 4 out of 4 pass at 12 dB SNR
- Quick 3: 2, 3, 4 & 5 kHz with 3 out of 4 pass at 12 dB SNR (as fast as possible)
- Quick 4: 1, 1.5, 2, 3, 4, 5, 6 & 8 kHz with 8 out of 8 pass at 12 dB SNR
- Quick 5: (same protocol as Quick 4)
- Configurable protocols
- FM DPOAE feature generates more robust responses and improved reliability
- Multi-frequency feature tests two frequencies simultaneously for shorter screening time
- 4 fixed protocols
- Air conduction
- frequency range: 125 Hz to 8 kHz
- attenuation levels: -10 dB HL to 110 dB HL
- packaged with calibrated DD45 headphones
- DPOAE
- 3.5" full color, LCD touchscreen with intuitive icons
- Powered by rechargeable Li-Ion battery (included; fitted inside unit) offers up to 8 hours of testing; unit can be used while recharging
- Internal memory stores up to 1000 patient exams
- 2 year warranty
Other available options:
- optional Seiko printer w/connector cable for Sentiero Handheld: item# 100189
- optional Able printer w/connector cable for Sentiero Handheld: item# 100686
- optional 2nd DPOAE probe to screen both ears simultaneously: item# 100530-US
- model with DPOAE screening + air conduction screening capabilities: item# 100250-SC-AUD
Compatible Eartips for OAE
- Grason PM series eartips
- Comply DO-135 series eartips
- Path Medical series eartips
- Eartip kit: item# 100676
- 5mm, blue: item# 100063-100
- 6-9 mm, blue: item# 100064-100
- 8-11mm, clear: item# 100144-100
- 13-16mm, blue: item# 100125-100
- 14mm, clear: 100576-100
- 18mm, clear: 100577-100
- 10mm, foam: item# 100838-100
- 14mm, foam: item# 100839-100
- 8mm, foam: item# 100840-100
Quick Start for MIRA
- (1) Sentiero Screener- DPOAE & Audiometry
- (1) DD45 Headphones
- (1) Power Supply Plug
- (1) OAE Ear Probe 90 angled (red)
- (1) Accessory Box, OAE & ABR eartips and other assorted accessories (newborns, children & adults)
- (1) USB Cable
- (1) Black Carrying Case
- User Manual
- Dimensions: 8.3" x 3.85" x 2.05"
- Weight: 1.10 lbs
- Display: 240 x 320 pixel, graphic LCD (3.5")
